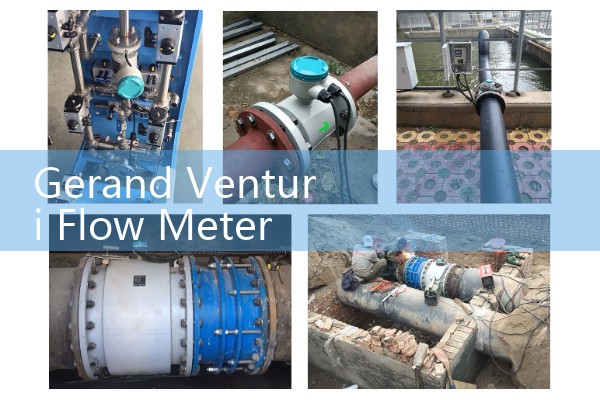

Gerand Venturi Flow Meter Spacing: Upstream and Downstream Pipe Diameters for Precision Monitoring
Quick Answer: Gerand Venturi flow meter spacing starts at 10D upstream and 4D downstream for clean pipe runs. For elbows, pumps, and control valves, increase the upstream length to 20D or 30D. The target is a stable velocity profile before the meter throat.
Why Straight Pipe Length Matters
Venturi meters read differential pressure across a throat. That reading depends on a stable flow profile. An upstream elbow, tee, valve, or pump creates swirl or asymmetry. The swirl changes the differential pressure. The meter then reports a flow rate that is too high or too low. Short straight runs are a common cause of field error. Most engineers skip this part during piping design. Then the installed meter does not meet its accuracy limit.
We have seen this on customer sites many times. A water treatment plant in Vietnam had a Gerand venturi meter installed after a partially open butterfly valve. The flow reading shifted by 4 percent at low flow. The valve was only 6D upstream. After the piping was changed to 18D, the reading stabilized.
Recommended Upstream Straight Pipe Lengths
The upstream requirement is not one fixed number. It depends on the fitting in front of the meter. A fully open gate valve usually needs 10D. A single 90 degree elbow needs 20D. Two elbows in different planes need 30D or more. A pump discharge can need 25D to 35D depending on impeller type, speed, and distance from the discharge flange. A control valve at partial opening should have at least 30D. A reducer should be placed 15D before the meter.
For a DN100 Gerand venturi meter, 20D equals 2000 mm or 2.0 m of straight pipe. For a DN200 meter, 20D equals 4000 mm. For a DN300 meter, 20D equals 6000 mm. This is a layout issue. Pipe rack space must be calculated before the mechanical package is frozen.
Recommended Downstream Straight Pipe Lengths
Downstream length is easier. Use 4D to 5D downstream before any valve, tee, or bend. This allows pressure recovery to finish without disturbances. A DN150 meter needs about 600 mm to 750 mm downstream. A DN250 meter needs about 1000 mm to 1250 mm.
Do not place a flow control valve 2D downstream. We have seen that mistake in Southeast Asia and Latin America. The valve creates pressure pulsations that travel back to the meter throat. The differential pressure transmitter then shows noise. It is not a meter problem. It is a piping problem.
Pipe Diameter Effects and Reynolds Number
Keep the same nominal bore through the straight run. A step change in pipe diameter near the meter triggers flow separation and recirculation zones. If the upstream pipe is larger, use an eccentric reducer outside the minimum straight run. If the downstream pipe is larger, use a gradual expander after the required downstream length.
Venturi meters are less sensitive to viscosity than orifice plates. But Reynolds number still matters. Low velocity with high viscosity can shift the discharge coefficient. Check the Reynolds number range for your Gerand meter size. Fo
Installation Rules We Use on Customer Sites
Here is the thing. Many sites do not have enough straight run. Before you cut pipe, measure the available space. If you have less than 5D upstream, do not expect high accuracy from a Venturi meter. In practice, a flow conditioner can cut the required upstream length to about 5D to 8D after the conditioner. But it adds pressure loss and cost.
For very short straight runs, Silver Automation Instruments recommends electromagnetic flow meters or Coriolis mass flow meters. A Coriolis meter from Silver Automation Instruments works with almost zero straight pipe. Electromagnetic flow meters need about 5D upstream and 2D downstream for many models. Silver Automation Instruments supplies electromagnetic flow meters from DN10 to DN3000 and Coriolis mass flow meters from DN3 to DN150. Ask us for a selection based on your pipe size and flow range.
FAQ
What is the minimum upstream straight pipe length for a Gerand Venturi flow meter?
A: Use 10D for a simple straight run with a fully open gate valve. Use 20D after an elbow. Use 30D after a control valve or pump. These values give a stable flow profile for precision monitoring.
Does downstream straight pipe length affect Venturi accuracy?
A: Yes. Downstream length affects pressure recovery and flow separation. Keep 4D to 5D downstream before any valve, tee, or bend. That prevents back pressure pulsations from corrupting the differential pressure signal.
Can I install a Gerand Venturi flow meter after a control valve?
A: You can, but the control valve should be at least 30D upstream if the valve is throttling. A better option is to place the Venturi meter before the control valve. Then the downstream straight run becomes the critical length.
What happens if the pipe diameter changes near the meter?
A: A sudden change creates jetting and recirculation zones. Use the same pipe schedule through the straight run. If a reducer is needed, install it outside the minimum required length.
Does a Gerand Venturi meter need a flow conditioner if straight run is short?
A: A flow conditioner can reduce the upstream requirement to about 5D to 8D after the conditioner. It adds cost and pressure drop. For very short runs, an electromagnetic flow meter or Coriolis meter may be a better option.
Get a Quote and Installation Review from Silver Automation Instruments
Send us your pressure in bar, temperature in degrees C, pipe size in DN, and flow range in kg/h or m3/h. We will recommend the right meter and straight run requirement for your site.
