High-Precision Oxygen Flow Meter Options for Medical and Industrial Gas Systems
Quick Answer: For high-precision oxygen measurement, thermal mass flow meters and Coriolis mass flow meters are the two most reliable choices. They deliver direct mass flow reading and accuracy better than 0.5% of reading. Silver Instruments supplies both types with oil-free cleaning, 4-20 mA HART output, and ATEX Zone 2 certifications for medical and industrial gas systems.
Why Oxygen Flow Measurement Demands Extra Precision
Oxygen flow monitoring is not like measuring water or nitrogen. A small error can change a medical ventilator setting or alter an industrial oxidation process. In medical gas systems, the difference between 5.0 L/min and 5.5 L/min matters. In steel manufacturing or glass production, oxygen flow directly affects combustion efficiency and yield. So hospital engineers and process plant managers need meters that hold calibration even with temperature swings and line pressure changes.
Silver Instruments engineers have seen this on customer sites many times. A customer in Thailand running a medical oxygen manifold asked us to replace their old turbine meter because the bearing deteriorated and caused a 3% drift. Another customer in Saudi Arabia who operates an ozone generation plant needed a meter that could handle dry oxygen without corrosion and still measure 0.5 kg/h at a pressure of 6 bar. Both cases required a high-precision oxygen flow meter with a clean, oil-free wetted path.

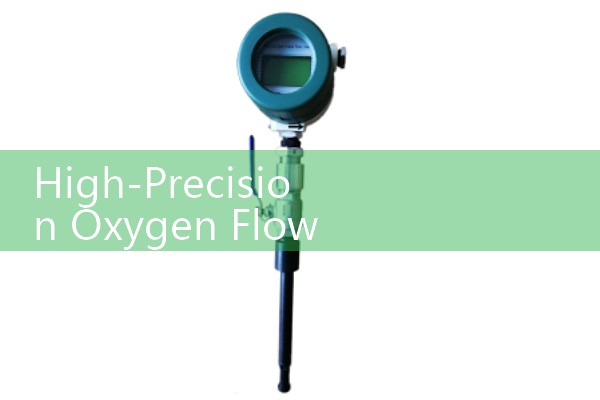

Thermal Mass Flow Meters for Oxygen Gas
Thermal mass flow meters are a practical choice for many oxygen applications. They measure direct mass flow without needing temperature or pressure compensation. The sensor uses two platinum RTD probes (PT100 reference class) and the constant temperature difference method. One probe is heated, the other measures process temperature. As oxygen flows across the probes, the cooling effect changes. The meter calculates mass flow from the power required to maintain the set temperature differential.
Silver Instruments offers the Silver-TMF series for oxygen service. Key specs include accuracy of ±0.5% of reading plus ±0.05% full scale, and a turndown ratio of 100:1. Standard outputs are 4-20 mA HART, Modbus RTU, and a pulse output for totalizing. Process connections can be DN15, DN20, DN25, and up to DN50 with NPT or flange options. All wetted parts are 316L stainless steel and cleaned per ASTM G93 Level C for oxygen service. No oil, no grease, no particle contamination.
In practice, most engineers skip this part but it is critical. The flow meter body and sensor must be handled in a clean room environment before sealing. Silver Instruments performs this oxygen cleaning in-house and provides a certificate with each shipment. A gas distributor in Vietnam recently ordered 15 units of the Silver-TMF-DN15 for their medical oxygen manifold project. They needed a short 3-week lead time and ATEX Zone 2 certification for the gas cabinet. We delivered the batch with individual calibration reports traceable to NIST.
Coriolis Mass Flow Meters for High-Accuracy Oxygen Dosing
When an oxygen application requires even higher accuracy or liquid oxygen measurement, a Coriolis mass flow meter becomes the top option. Coriolis meters measure mass flow and density simultaneously. The measurement principle is immune to flow profile disturbances and piping effects. Silver Instruments Silver-CMF series can measure gaseous oxygen at low flow rates down to 0.2 kg/h and high flow rates up to 10,000 kg/h depending on the tube size.
The Silver-CMF meters use dual U-shaped or micro-bend tubes in 316L stainless steel. For oxygen gas, the meter must be thoroughly cleaned and dried. Our production team follows CGA G-4.1 oxygen cleaning guidelines. The standard accuracy is ±0.2% of reading for flow and ±0.001 g/cm³ for density. Outputs include 4-20 mA HART, Modbus, and optional PROFIBUS DP for plant-wide integration. Many chemical plants in the Middle East select this meter for oxygen injection into reactor vessels. They appreciate the built-in diagnostics that detect coating or corrosion inside the tubes early.
Here is the thing. Coriolis meters cost more upfront than thermal mass meters. But in dosing applications where billing or batch quality depends on exact oxygen mass, the payback comes fast. A paint manufacturer in Southeast Asi
What About Vortex and Differential Pressure Meters for Oxygen
Vortex meters and DP meters with orifice plates are sometimes used for bulk oxygen lines. They are lower cost but have limitations. Vortex meters require a minimum Reynolds number to generate stable vortices. In low-flow medical oxygen lines, the meter often drops out of range. DP meters introduce permanent pressure loss and need square root extraction in the transmitter. They also need periodic inspection of the orifice edge sharpness. For high-precision oxygen measurement, Silver Instruments recommends either thermal mass or Coriolis technology. The total cost of ownership favors direct mass flow measurement over traditional DP systems when you add calibration and maintenance hours.
Installation Tips from Field Experience
Oxygen flow meter installation is not just about pipe size. You need straight run upstream and downstream. For thermal mass meters, we recommend 15D upstream and 5D downstream when a flow conditioner is not used. For Coriolis meters, the pipe run does not affect accuracy but the meter must be supported properly to avoid vibration coupling. Avoid installing any oxygen meter near steam lines or heat sources that cause gas density fluctuations. Oxygen is also a strong oxidizer. All fittings, valves, and seals must be oxygen-compatible. Silver Instruments supplies PTFE or Kalrez O-rings with the meters for oxygen service. We have seen a customer in Nigeria ignore the seal compatibility and use a standard Viton O-ring. After three weeks, the seal swelled and caused an internal leak. Using the right material from the start avoids such field failures.
FAQ: High-Precision Oxygen Flow Meters
Q: What is the typical accuracy of a thermal mass flow meter for oxygen gas?
A: The Silver-TMF series provides ±0.5% of reading plus ±0.05% full scale accuracy. This covers most medical and industrial gas monitoring needs, from ventilator air-oxygen blending to boiler oxygen trim.
Q: Can Coriolis meters measure both gaseous and liquid oxygen?
A: Yes. The Silver-CMF series measures gaseous oxygen, liquid oxygen, and even oxygen-enriched mixtures. It handles cryogenic liquid oxygen at -180°C with a special sensor insulation option. The mass flow and density signals remain stable across the phase change.
Q: How do you ensure the flow meter is clean for oxygen service?
A: Silver Instruments cleans every oxygen flow meter per ASTM G93 Level C or CGA G-4.1 standards. We use ultrasonic cleaning with alkaline detergent, followed by deionized water rinse and hot nitrogen drying. The meter is then bagged and sealed with a certificate. No oil or hydrocarbon residue remains in the wetted path.
Q: Do I need ATEX certification for oxygen flow meters?
A: Oxygen itself is not flammable but it accelerates combustion. If the meter is installed in a zone where an explosive atmosphere may occur (e.g., flammable gases present), ATEX or IECEx certification is mandatory. Silver-TMF and Silver-CMF series are available with ATEX Zone 2 certification as a standard option. For Zone 1, we provide an intrinsically safe circuit version upon request.
Q: What outputs are available for integrating with my PLC or BMS?
A: All Silver Instruments oxygen flow meters come with 4-20 mA HART, RS485 Modbus RTU, and a passive pulse output as standard. Optional outputs include PROFIBUS DP and Foundation Fieldbus. Our technical support team helps you map the registers to your system quickly.
How to Specify Your Oxygen Flow Meter with Silver Instruments
Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. We will check the best meter type for your application. If you have a preferred output, such as 4-20 mA HART with Modbus, include that too. For orders requiring oxygen cleaning and certification, let us know the cleaning standard your project demands.
