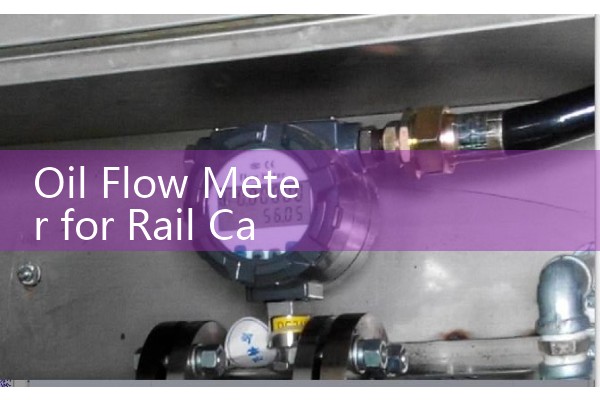

Oil Flow Meter for Rail Car Loading: High-Capacity Batching and Spill Prevention
Quick Answer: Rail car oil loading needs a flow meter that combines high flow capacity, batching accuracy within ±0.2% and reliable spill prevention. Silver Automation Instruments provides oval gear and Coriolis mass flow meters in sizes from DN50 to DN150, with ATEX Zone 1 certifications and dual-stage shut-off valves. Send us your pipe size (DN), oil viscosity (cP) and required loading time. We will recommend a full metering skid that fits your terminal.
The Loading Bay Problem Engineers Cannot Ignore
A rail car holds 60 to 95 cubic meters of diesel, crude or base oil. You want to fill it in under 45 minutes. That demands a flow rate of 1500 to 2100 L/min. At that speed, a 3-second delay in valve closure can spill hundreds of liters. Mechanical counters and basic turbine meters drift over time. Temperature changes of just 15°C shift oil volume by almost 1.5%. Over a week of loading, that means thousands of dollars of unaccounted product. We have seen a fuel depot in Nigeria lose 0.9% of every rail shipment before they switched to a Coriolis meter with active temperature compensation.
Oval Gear vs. Coriolis: Pick Your Accuracy Battle
Most terminals start with positive displacement meters. An oval gear meter with hardened rotors handles oil from 2 cP to 2000 cP without losing precision. Silver Instruments supplies these with PT100 temperature probes built into the meter body. The 4-20 mA HART output gives you volume at standard temperature (15°C) and raw pulses for the batch controller. A lubricant blending plant in Malaysia runs six DN65 oval gear units, each batching 25 kL of bright stock at 90°C. Over two years, the metering error stayed below 0.28%.
If your contract requires custody transfer accuracy, go with a Coriolis mass flow meter. This meter measures mass directly, not volume. It ignores viscosity shifts and air pockets. A DN100 Coriolis from Silver Instruments delivers ±0.15% mass accuracy at flow rates up to 1800 L/min for diesel. The meter also reports density and temperature in real time. This makes batching by weight possible, not just by volume. A crude oil terminal in Oman switched from turbine meters to Coriolis and cut billing disputes by 72% in the first quarter.
High-Capacity Batching Without Human Error
Batching a rail car means preset quantity, start, fast fill, slow fill, stop. The flow meter sends pulses to a batch controller like the Silver Instruments SI‑B200. The controller opens a main large-bore ball valve for the fast stage. At 95% of target, it closes that valve and opens a smaller DN25 bypass valve for trickle feed. This two-stage shut-off routine keeps overrun volume under 5 liters. Most engineers skip the bypass stage and rely on a single valve timer. In practice, a single valve shock at shut-off creates pressure surges that damage hoses and cause drips after disconnect. We recommend a dual-valve manifold with a check valve right at the rail car coupling.
Spill Prevention Features That Save Real Money
A spill on a rail spur line is not just a cleanup cost. It stops loading, triggers environmental fines and can void your terminal insurance. Silver Automation Instruments integrates direct-coupled high-level probes into the rail car dome. When the probe senses liquid, it triggers an emergency shutdown relay independent of the batching controller. This signal closes an upstream ball valve with a pneumatic actuator in under 2 seconds. Because the shut-off is hardwired, a PLC fault cannot override it. A terminal in Thailand adopted this setup after a night shift operator fell asleep and overfilled a car of biodiesel. The retrofit paid for itself in four mont
Why Local Support Matters Across Different Regions
Flow meter calibration in the factory is not enough. A meter tested with 2 cP diesel will not read correctly with 600 cP heavy fuel oil unless it is calibrated on a similar fluid. Silver Instruments keeps a reference viscometer and calibration rigs in our regional partner workshops in Vietnam, Indonesia and the UAE. When a rail terminal in São Paulo ordered a DN80 oval gear meter for used cooking oil, we matched the calibration fluid to 45 cP at 60°C. The first rail car batch matched the weighbridge ticket within 0.12%.
Recommended Meter Models and Specifications
For heavy oils above 100 cP, start with the Silver OG Series oval gear flow meter. Available sizes: DN25 to DN200. Standard body material: cast steel or stainless steel 316. Rotors: hard‑coated aluminum or PPS. Accuracy: ±0.25% of reading. Options include integrated PT100 and a local totalizer display. Output: 4-20 mA, pulse, HART.
For clean fuels and custody transfer, choose the Silver CMF Series Coriolis mass flow meter. Line sizes: DN15 to DN150. Mass accuracy: ±0.15%. Process temperature rating: -50°C to +200°C. Safety certification: ATEX Zone 1, Ex d IIC T4 for gas environments. The transmitter calculates net oil volume at 15°C and provides a Modbus RTU readout for terminal SCADA.
Both meter families can be supplied as a pre‑mounted skid with strainer, air eliminator, dual‑stage valves and a SI‑B200 batch controller. The skid comes pressure tested and ready for DN100 or DN150 loading arms.
FAQ: Five Key Questions on Rail Car Loading Meters
What accuracy do I really need for oil custody transfer? A repeatability of ±0.15% of rate is the minimum for most commercial contracts. Oval gear meters achieve this for viscous oils. Coriolis meters do it for all oil types regardless of temperature. Ask your commercial team if the contract demands mass-based or volume-based billing.
Can oval gear meters handle crude oil with some sand? Crude with fine particulates shortens rotor life. Silver Instruments fits a magnetic filter upstream on all crude loading skids. For sandy crude above 500 ppm solids, we recommend a Coriolis meter with a straight single‑tube design that resists clogging. We have a running reference from a wellhead terminal in Argentina using a DN50 straight‑tube Coriolis for two years without drift.
How do you stop a spill caused by a stuck open valve? Build a hardwired overfill loop with a float switch on the rail car and a spring‑return pneumatic actuator on the main shut‑off valve. The batch controller runs in parallel but cannot override the hardwired circuit. This arrangement meets API RP 2350 recommendations for overfill protection.
What approvals do I need for a gasoline loading rack? At minimum, the flow meter and valve actuators must carry ATEX or IECEx Zone 1 certification for gas group IIA or IIB. Silver Instruments meters come with Ex d or Ex ia certification. Always check the local electrical code. In the Middle East, many terminals also require ADNOC or ARAMCO material conformity.
How fast can Silver Automation Instruments ship a complete skid to Africa? Standard oval gear skids in DN80/DN100 ship from stock in 3 working days. Customised Coriolis skids with dual‑stage valves take 14 days to assemble and calibrate. We air freight to Lagos, Mombasa or Durban within one week. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range to get a fixed quotation with lead time.
Ready to upgrade your rail car loading meters? Tell us your oil type, flow rate and loading time goal. We will select the right meter and build a spill‑safe batching package that fits your terminal footprint.
