Flow Meter Square Root Formula Breakdown

Calculating Volumetric Rates from Differential Pressures

Quick Answer: A differential pressure flow meter does not output a linear flow signal. Volumetric flow follows the square root of differential pressure. Use Q = Qmax * sqrt(DP / DPmax) for scaling. Correct for density when the fluid is gas, steam, or hot liquid. Silver Automation Instruments supplies pressure transmitters and paperless recorders for this calculation.

Why Differential Pressure Is Not Linear

An orifice plate, Venturi tube, wedge meter, or Annubar creates a pressure drop across a restriction. That drop is differential pressure. The link to flow comes from Bernoulli. Volume flow is proportional to the square root of differential pressure divided by fluid density.

Many engineers expect a linear output. Here is the thing. At 50 percent of maximum flow, a DP meter does not produce 50 percent of maximum pressure. It produces 25 percent. Pressure drop rises with the square of velocity.

Base Formula for Volumetric Rate

For field scaling, use this simple form.

Q = Qmax * sqrt(DP / DPmax)

Q is volumetric flow in m3/h or L/h. Qmax is the maximum flow at DPmax. DP is the live differential pressure. DPmax is the differential pressure at maximum flow.

Example. A flow meter in a dairy plant in Australia has Qmax = 120 m3/h at DPmax = 25 kPa. If the transmitter reads 6.25 kPa, DP / DPmax is 0.25. The square root of 0.25 is 0.50. Actual flow is 60 m3/h.

Density Correction for Gas and Steam

Liquids have less density change. Gases and steam change fast with pressure and temperature. Use this correction.

Qactual = Qindicated * sqrt(ρreference / ρactual)

ρ is density in kg/m3. A pressure transmitter gives absolute pressure. A PT100 or thermocouple gives temperature. A flow computer or PLC calculates actual density from these signals. We have seen this on a natural gas line in Malaysia. Design density was 0.82 kg/m3. Actual density was 0.93 kg/m3 because line pressure was higher. At the same DP, actual volumetric flow was about 6 percent lower than indicated flow. That error matters in custody transfer.

Square Root Extraction in a 4-20 mA Transmitter

Most DP transmitters output a 4-20 mA signal. In DP mode, 4 mA is zero DP and 20 mA is maximum DP. In flow mode, the transmitter applies square root extraction internally. At 12 mA, flow is 50 percent. At 16 mA, flow is 75 percent. At 20 mA, flow is 100 percent.

If the control system reads raw DP, the PLC or flow computer must apply the square root function. The square root curve has high gain near zero. Small pressure noise at low flow becomes a large flow swing. Set a low flow cutoff at 5 to 10 percent of flow span.

Worked Example from a Biogas Site

A wastewater treatment plant in Vietnam measures biogas with an orifice plate. Maximum DP is 12.5 kPa at 300 m3/h. The DP transmitter is configured for square root output. On a given day the transmitter outputs 8 mA. That equals 25 percent of flow span. Live flow is 75 m3/h.

If the operator reads raw DP i

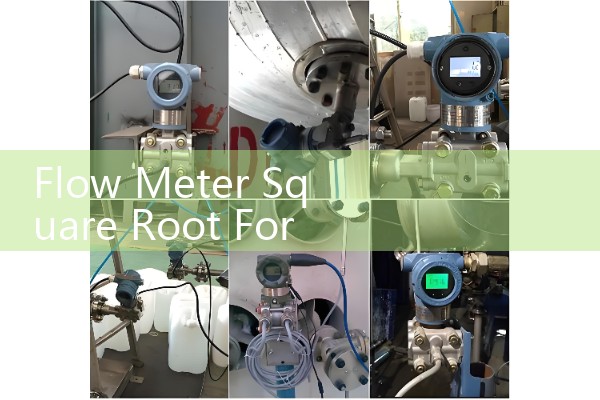

Flow Meter Square Root Formula Breakdown: Calculating Volumetric Rates from Differential Pressures
nstead, 8 mA is 25 percent of DP span. That DP value is 3.125 kPa. The square root of 0.25 is 0.50. Correct flow is half of 300 m3/h, which is 150 m3/h. Many systems show the wrong value when the control room is not configured correctly.

Low Flow Cutoff and Turndown Limits

DP meters have limited turndown because of the square root function. At 10 percent DP, flow is 31.6 percent. At 5 percent DP, flow is 22.4 percent. At 1 percent DP, flow is 10 percent. Below 10 percent flow, accuracy falls off. Small zero drift in the transmitter becomes a large flow error.

Set a low flow cutoff at 5 or 7 percent of flow range. This prevents false totalizer counts when the line is idle. In a chemical dosing line in Peru, we saw a flow totalizer count at zero flow because the DP transmitter had a small zero offset. A 0.3 kPa offset with a 25 kPa span produced a false 11 percent flow signal. That is normal for a square root curve near zero.

Installation and Calibration Notes

Install the DP transmitter below the taps for liquid service. For gas service, install above the taps. Use impulse lines filled with the process fluid or a suitable seal. Slope impulse lines to avoid bubbles in liquid or condensate in gas.

Calibrate zero with both pressure taps connected. Calibrate span with a known pressure source. For ATEX Zone 1 areas, pick a DP transmitter with the right approval. Silver Automation Instruments supplies pressure transmitters with 4-20 mA HART, ATEX Zone 1 options, and local displays.

For any flow meter calculation, send us your pressure in bar, temperature in °C, pipe size in DN, and flow range. Our team will help you select the right pressure transmitter or flow meter for the application.

FAQ

What is the square root formula for a DP flow meter?

Q = Qmax * sqrt(DP / DPmax). This gives volumetric flow when maximum DP and maximum flow are known.

Why is DP flow not linear?

Pressure drop across a restriction increases with the square of flow velocity. Flow is therefore proportional to the square root of differential pressure.

Do I need density compensation for liquid flows?

For most liquids, density changes are small. For heavy oils, hot water, or custody transfer, use live density or temperature compensation. For gases and steam, always correct for density.

Should I enable square root extraction in the transmitter or the flow computer?

Flow computers and modern PLCs often handle square root extraction and density compensation better. If the transmitter outputs flow directly, the control room must know the configuration.

What is a good low flow cutoff for a DP meter?

Set the cutoff at 5 to 10 percent of maximum flow. This avoids false totalizer counts from zero drift and noise near the square root curve origin.

Need a pressure transmitter for DP flow calculation? Contact Silver Automation Instruments. Tel: +86-25-68650347. WhatsApp: +86-25-52155837. WeChat: +86 15365082610. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. We will reply with pricing and product recommendations.
