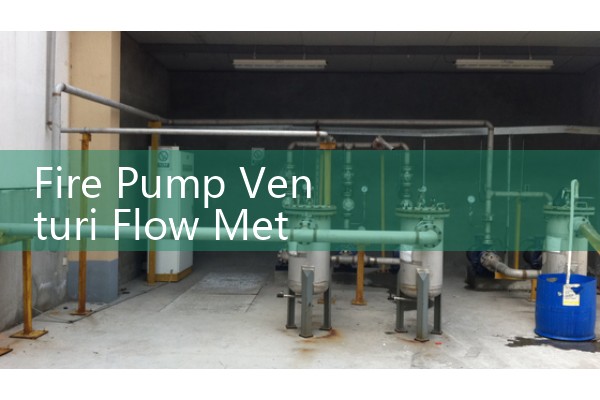

Fire Pump Venturi Flow Meter Troubleshooting: Fixing Low Pressure Differential Signal Errors
Quick Answer: A low differential pressure signal on a fire pump Venturi meter usually means blocked impulse lines, a leaking manifold, zero drift, or wrong square root settings. Clean the impulse lines first and check the transmitter configuration before replacing the Venturi tube. Send Silver Instruments your pipe size in DN and flow range in m3/h for a transmitter check.
Why Low Differential Pressure Happens on Fire Pump Venturi Meters
Fire pump Venturi meters measure flow from the pressure drop between the inlet and throat. If that pressure drop reads too low, the flow computer shows low flow or zero flow. Most plants see this at the worst time, during a weekly fire pump test or a real fire event.
A blocked high side impulse line is the most common cause. Firewater often comes from open ponds, rivers, or seawater. Sand, silt, shell fragments, and marine growth enter the piping. A customer in Vietnam found the DP reading on a diesel fire pump drop from 12.4 kPa to 2.1 kPa in two weeks. The high side line was packed with fine river sand.
A small leak in the impulse line or manifold is another cause. Even a pinhole leak on the high pressure side drops the signal. Check the fittings between the Venturi taps and the transmitter. Use a pressure decay test or a soap bubble test on metallic tubing.
Transmitter zero shift is the third cause. Fire pump rooms in the Middle East often reach 55 °C or higher. Differential pressure transmitters drift in high heat after long idle periods. Re-zero the transmitter with the manifold equalized and the pump off.
Wrong configuration is the fourth cause. Venturi flow follows a square root relationship with differential pressure. If the transmitter is set to linear output instead of square root output, the flow signal will be wrong. A 20 percent flow may display as 4 percent flow at the PLC.
Field Inspection Steps for Low DP Signal
Start with the transmitter. Read the actual DP value with a HART communicator or local display. Compare that value with the flow computer test point. If the transmitter reads 1.8 kPa but the control room shows 0.6 kPa, look for signal wiring problems or input scaling error.
Then check the manifold. Close the manifold valves one at a time. Equalize the high and low sides and watch the zero reading. A healthy transmitter returns to 0.0 kPa or within the published zero offset. If the zero is above 0.2 kPa on a 0 to 25 kPa range, re-zero it.
Blow down the impulse lines. Isolate the transmitter first so you do not overpressure the diaphragm. Flush the high side and low side lines with clean water. On seawater systems, flush with fresh water and inspect root valves for salt buildup.
Look for air pockets in the impulse lines. Fire pump suction lines often sit under vacuum during start-up. Air comes out of solution and collects at the transmitter. Vent the transmitter carefully and refill the lines with clean water.
Inspect the Venturi tube itself after five years or after a reported drop in performance. Pull the meter during a pump overhaul and check the th
_600x400.jpg)
Verify the Venturi Size and Transmitter Range
Do not assume the original range is still correct. Fire pumps sometimes run at lower flow than design because water pressure changed or the piping network was extended. The Venturi beta ratio fixes the DP for each flow. For a DN150 fire pump pipe with a beta ratio of 0.6 and a flow of 200 m3/h, the DP may be around 12 kPa. If the transmitter range is 0 to 100 kPa, that signal is only 12 percent of span. Change the transmitter range or use a smaller span transmitter with 4-20 mA HART output.
Silver Instruments supplies differential pressure transmitters for Venturi flow measurement on fire pump skids. Typical ranges are 0 to 10 kPa, 0 to 25 kPa, 0 to 60 kPa, and 0 to 100 kPa. Accuracy is 0.075 percent of span. Wetted parts are 316L stainless steel or Hastelloy C for seawater. The transmitter outputs 4-20 mA HART and supports square root conversion in the device.
Send us your pipe size in DN, actual flow range in m3/h, and fire pump suction pressure in bar. We will check the expected differential pressure and recommend a transmitter span. Tel: +86-25-68650347. Whatsapp: +86-25-52155837. WeChat: +86 15365082610.
FAQ: Fire Pump Venturi Flow Meter Low DP Signal
Why does the fire pump Venturi flow meter read zero during pump start?
Check the impulse line root valves first. Many sites close the root valves after maintenance and forget to open them. Then check the transmitter manifold. If high and low sides are equalized, the DP reads zero even when flow exists.
Can a leaking impulse line cause low DP or high DP?
It depends on which side leaks. A leak on the high pressure side drops the signal and flow reads low. A leak on the low pressure side makes DP read high, but the flow reading may jump or become unstable.
How often should we clean Venturi impulse lines on a fire pump?
For river water or seawater fire systems, inspect impulse lines every 3 months. For clean water systems, inspect every 6 months. Sand and silt are the top two causes of low DP signal in tropical countries.
What transmitter settings are required for Venturi flow measurement?
Set the transmitter to square root output if the PLC expects flow units directly. Use a 4-20 mA HART signal. Set the lower and upper range values to match the Venturi calculation. Verify damping is not too high, normally 1 to 2 seconds.
When should we replace the Venturi tube instead of troubleshooting the transmitter?
Replace the Venturi if the throat shows erosion, deep scratches, pitting, or coating that cannot be cleaned. Also replace it if the flow coefficient shifts more than 1.5 percent from the original calibration. Routine transmitter checks solve most low DP signal problems. The Venturi itself is usually not the first suspect.
For a fast quote or transmitter span check, contact Silver Automation Instruments. Send your pipe size, flow range, pressure, and temperature to Whatsapp +86-25-52155837.
